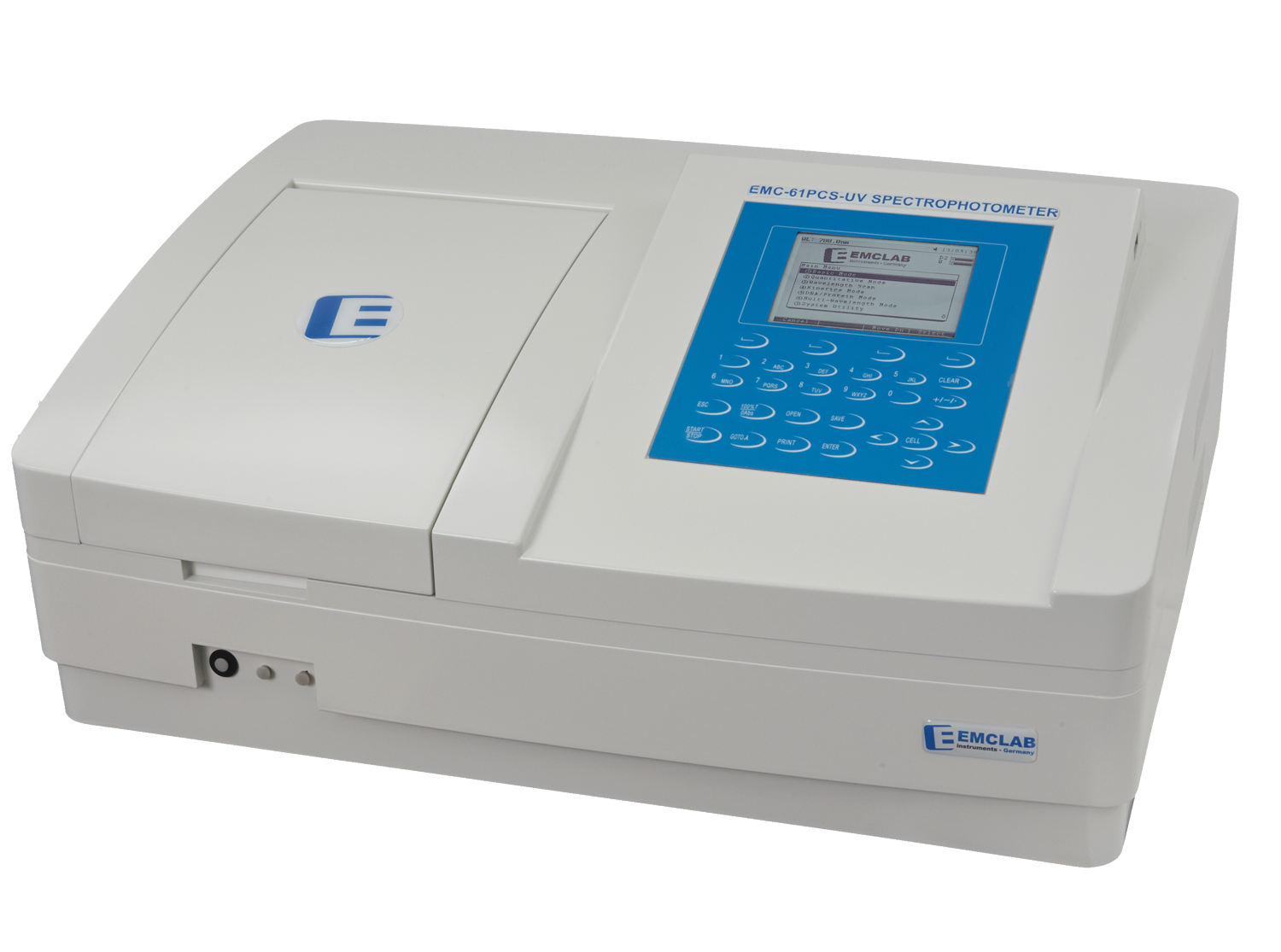

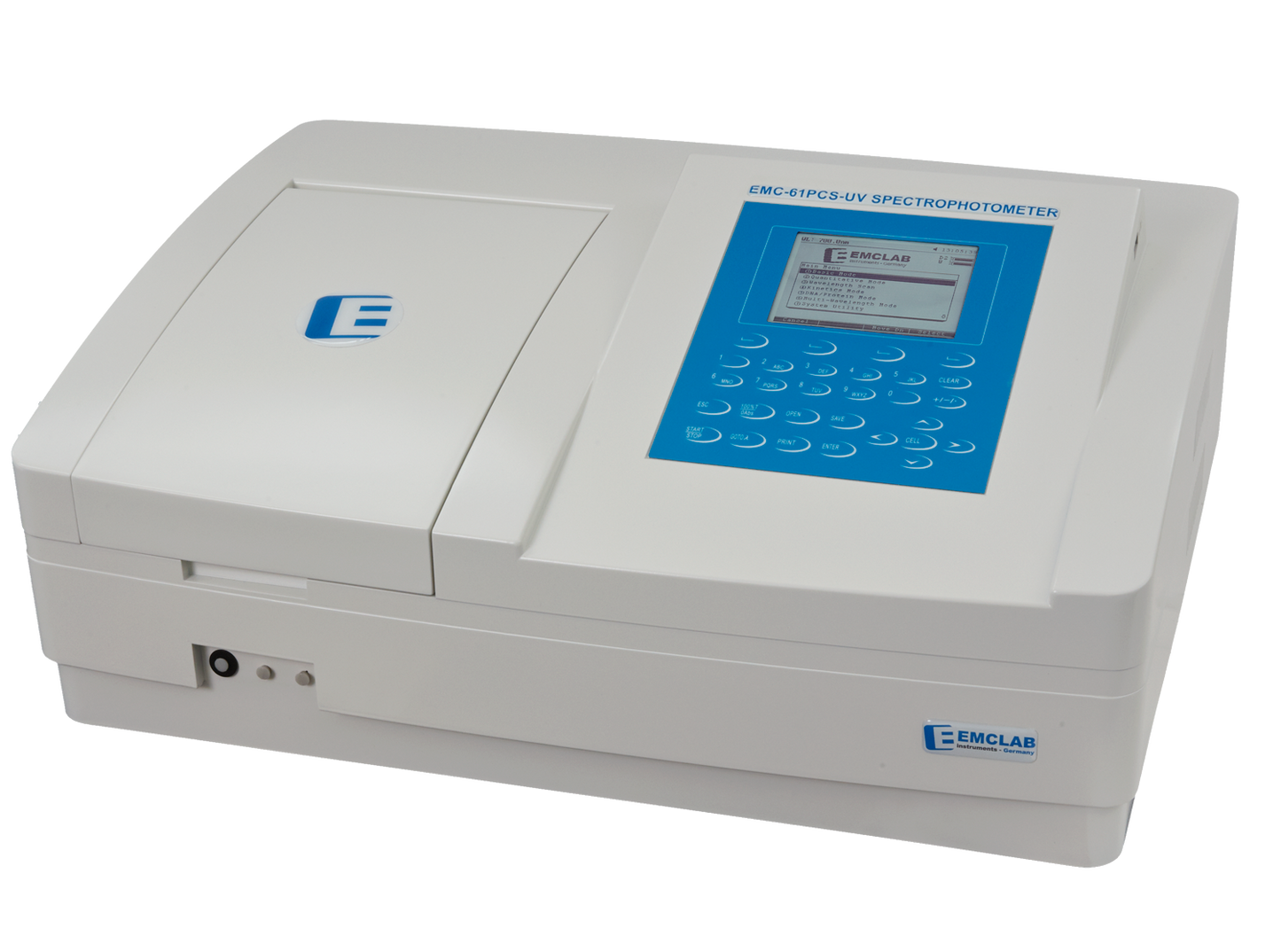

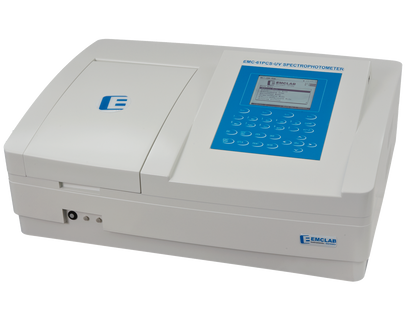

EMC-61PCS-UV, Double Beam

• Double Beam
• Variable bandwidths 0.5/1/2/4/5 nm
• LCD screen (320*240)
• Self-check system
• Auto setting wavelength
• Auto Zero and Blank
• Sample compartment for different cell holders
• Incl. USB memory stick for methods and results
• Incl. PC software ANALYST (Quantitative, Kinetics, Photometry Measurement, Wavelength Scan, Multi-Wavelength, DNA/Protein, System Utilities)
• Incl. EMCLAB Works Calibration Certificate

Wavelength Range: 190-1100 nm
Spectral Bandwidth: 0.5/1/2/4/5 nm
Optical System: Double Beam, grating 1200 lines/mm
Wavelength Accuracy: ±0.3 nm
Wavelength Repeatability: 0.2 nm
Photometric Accuracy: ≤±0.5 % T or ±0.005A@1A
Photometric Range: 0-200 % T, -0.3 - 3A
Photometric Repeatability: ≤0.001A (0-0.5A), ≤0.002A (0-0.5A) ≤0.15 % T (0-100%)
Scan Speed: Hi, MED, LOW, MAX. 3000 nm/min
Stray Light: 0.05 % T@220, 340 nm
Stability: ±0.001A/h@500 nm
Baseline Flatness: ±0.001A (200-1000 nm)
Noise: 0.0003A@500 nm
Detector: Silicone Photodiode
Display: LCD 320*240
Central beam height: 15 mm
Standard Cell Holder: 4-position cell holder + 1 reference 10x10 mm
Light Source: Tungsten & Deuterium lamp
Output: USB port A for USB memory stick, USB port B for PC connectivity, parallel port for printer
Power Requirement: AC 110/220V 50/60 Hz
Dimensions (LxWxH): 589 x 428 x 240 mm
Weight: 24 kg

- EMC-61PCs-UV spectrophotometer
- USB dongle for Analyst software
- Set of 4 standard glass cuvettes 10x10 mm
- Set of 2 quartz glass cuvettes 10x10 mm
- Dust cover
- Microfiber cloth
- Mainslead
- USB cable
- Calibration certificate

Package details (incl. pallett): 80x60x58 cm, gross weight 30,4 kg
