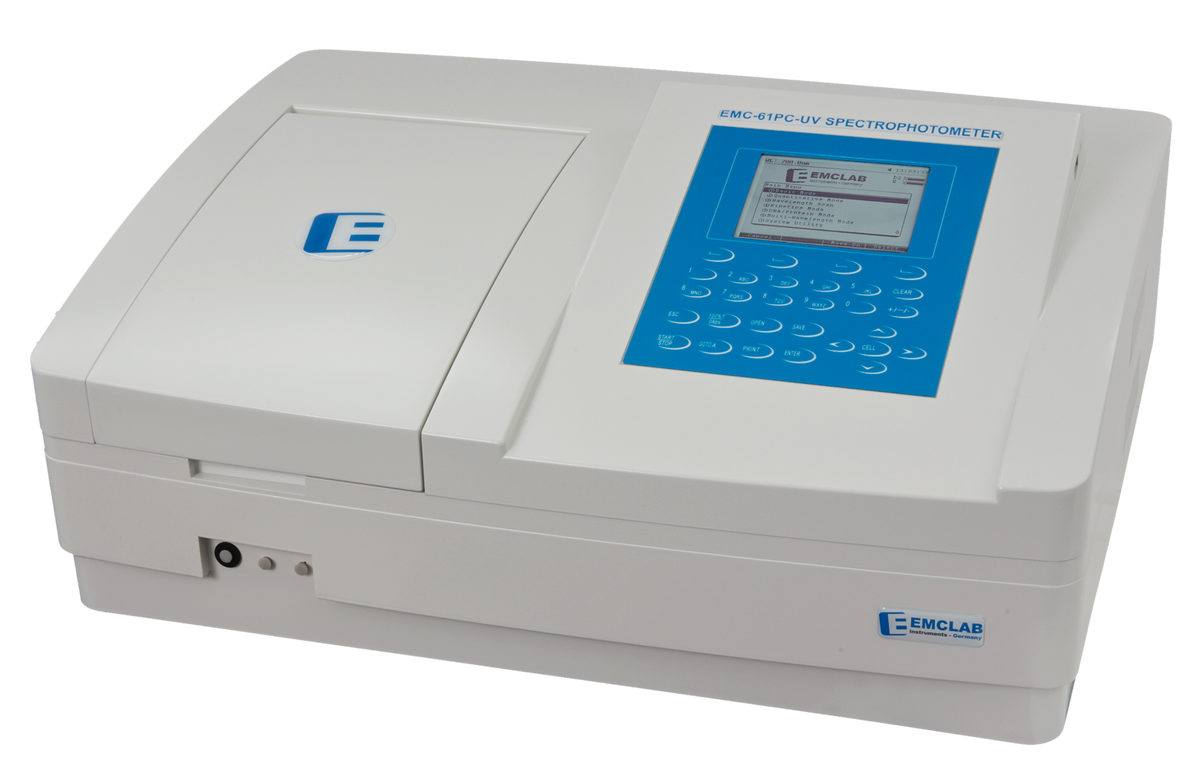

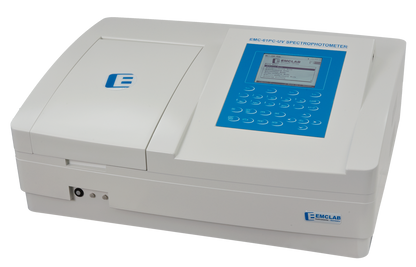

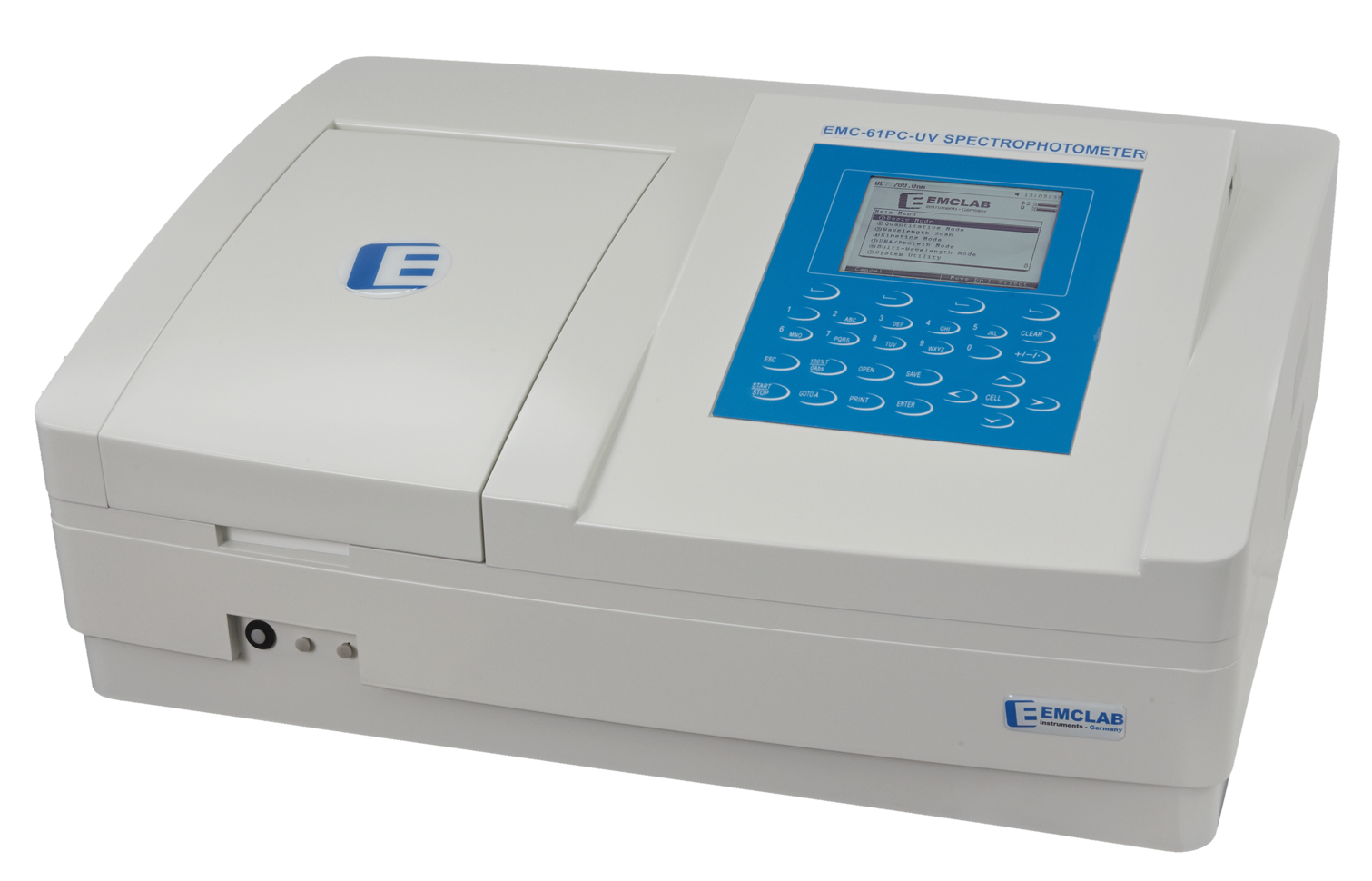

EMC-61PC-UV, Double Beam

• Double Beam
• LCD screen (320*240 dots)
• Self-check system
• Auto Zero and Blank
• Sample compartment for different cell holders
• Incl. USB memory stick for methods and results
• Incl. PC software ANALYST (Wavelength Measurement,
Wavelength Scan, Quantitative Measurement, Kinetic Measurement, DNA/Protein Measurement)
• Incl. EMCLAB Works Calibration Certificate

Wavelength Range: 190-1100 nm
Spectral Bandwidth: 1.8 nm
Optical System: Double Beam, grating 1200 lines/mm
Wavelength Accuracy: ±0.3 nm
Wavelength Repeatability: 0.2 nm
Photometric Accuracy: ≤±0.5 % T or ±0.005A@1A
Photometric Range: 0-200 % T, -0.3 - 3A
Photometric Repeatability: ≤0.001A (0-0.5A), ≤0.002A (0-0.5A) ≤0.15 % T (0-100%)
Scan Speed: Hi, MED, LOW, MAX. 3000 nm/min
Stray Light: 0.05 % T
Stability: ±0.001A/h@500 nm
Baseline Flatness: ±0.001A (200-1000 nm)
Noise: 0.0003A@500 nm
Detector: Silicone Photodiode
Display: LCD 320*240
Central beam height: 15 mm
Standard Cell Holder: 4-position cell holder + 1 reference 10x10 mm
Light Source: Tungsten & Deuterium lamp
Output: USB port A for USB memory stick, USB port B for PC connectivity, Parallel port for printer
Power Requirement: AC 110/220V 50/60 Hz
Dimensions (LxWxH): 589 x 428 x 240 mm
Weight: 22 kg

- EMC-61PC-UV spectrophotometer
- USB dongle for Analyst software
- Set of 4 standard glass cuvettes 10x10 mm
- Set of 2 quartz glass cuvettes 10x10 mm
- Dust cover
- Microfiber cloth
- Mainslead
- USB cable
- Calibration certificate

Package details (incl. pallett): 80x60x58 cm, gross weight 29,7 kg

• Hasan, I., Saha, T., & Reza, M. S. (2019). Preparation and In-vitro Characterization of Gastroretentive Floating Tablets of Domperidone. Bangladesh Pharmaceutical Journal, 22(2), 170–175. https://doi.org/10.3329/bpj.v22i2.42300
• hu, J., Zhang, Q., Yang, T., Liu, Y., & Liu, R. (2020). 3D printing of multi-scalable structures via high penetration near-infrared photopolymerization. Nature Communications, 11(1). https://doi.org/10.1038/s41467-020-17251-z
• Hu, P., Qiu, W., Naumov, S., Scherzer, T., Hu, Z., Chen, Q., Knolle, W., & Li, Z. (2020). Conjugated Bifunctional Carbazole‐Based Oxime Esters: Efficient and Versatile Photoinitiators for 3D Printing under One‐ and Two‐Photon Excitation. ChemPhotoChem, 4(3), 224–232. https://doi.org/10.1002/cptc.201900246
• Hu, P., Zhu, J., Liu, R., & Li, Z. (2019). Conjugated ketocarbazoles as efficient photoinitiators: from facile synthesis to efficient two-photon polymerization. Journal of Photopolymer Science and Technology, 32(2), 257-264.
• Jamal, A., Arif, A., Kiran, S., Shahid, M. N., & Hossain, Md. B. (2024). Inquisition of the Phytochemistry, Antioxidants, and Hemolytic and Antimicrobial Potential of Polar Extracts of Moringa oleifera Leaves Indigenously Grown in Pakistan. Journal of Chemistry, 2024(1). https://doi.org/10.1155/joch/9500215
• Kanon, K. I. (2017). Quantitative determination of artificial sweeteners and sucrose in energy drinks and mango juice available in Dhaka city by UV-Spectrophotometric method (Doctoral dissertation, BRAC University).
• Lesbani, A., Maretha, D. R., Taher, T., Miksusanti, Mohadi, R., & Andreas, R. (2018). Layered double hydroxides Mg/Fe intercalated H3[α-PW12O40]·nH2O as adsorbent of cadmium(II). In AIP Conference Proceedings (Vol. 2049, p. 020013). Author(s). THE 3RD INTERNATIONAL SEMINAR ON CHEMISTRY: Green Chemistry and its Role for Sustainability. https://doi.org/10.1063/1.5082418
• Mai, T. T. T., Phan, S. K., Nguyen, N. H., Nguyen, B. N. Q., Tran, H. T. T., Nguyen, P. V. N., & Ha, T. P. (2025). Flocculation of metal oxide nanoparticles and anionic dyes using Chitosan – Poly (N-isopropylacrylamide) graft polymer. Journal of Polymer Research, 32(7). https://doi.org/10.1007/s10965-025-04465-2
• Meghla, Y. T. (2018). Quantitative Analysis of artificial sweeteners in soft drink samples (Doctoral dissertation, BRAC Univeristy).
• Mohammad, N. Z., Abdoulrahman, K. A. M. A. R. A. N., & Karim, A. Y. (2023). The Identification of specifics and characteristic of Iraqi Kurdistan honey based on International Biochemical Standards. Journal of Survey in Fisheries Sciences, 10(3S), 1445-1454.
• Mohammad, N. Z., Abdoulrahman, K., & Karim, A. Y. (2023). Diastase enzyme activity and hydroxymethylfurfural production during thermal processing of honey. Diyala Agricultural Sciences Journal, 15(2), 1-10.
• Mohinuzzaman, M., Mowa, J., Kabir, M. M., Chowdhury, M. A. Z., Nesha, M., Mostofa, K. M. G., Niloy, N. M., Shammi, M., & Tareq, S. M. (2025). Water quality and fluorescent dissolved organic matter dynamics of Dhaleshwari River. Frontiers in Water, 7. https://doi.org/10.3389/frwa.2025.1507254
• Setiawan, W., Fadilah, S. N., & Gulo, F. (2025). Initial Application of Cd/Cu Layered Hydroxide Chloride as Adsorbent for Congo Red Removal from Aqueous Solution. Elsevier BV. https://doi.org/10.2139/ssrn.5335351
• Shafout, I. I. M. (2022). Favorable attributes and biological effects of Hibiscus Sabdariffa (Doctoral dissertation, Al-Quds University).
• Shen, Y., Lou, Y., Wang, Z., & Xu, X. (2017). In-situ growth and characterization of indium tin oxide nanocrystal rods. Coatings, 7(12), 212.
• Sulaiman, I. E. J. (2022). Flaxseed Oil Extract And Its Medicinal Benefits (Doctoral dissertation, Al-Quds University).
• Taher, T., Christina, M. M., Said, M., Hidayati, N., Ferlinahayati, F., & Lesbani, A. (2018). Removal of Iron(II) Using Intercalated Ca/Al Layered Double Hydroxides with [α-SiW12O40]4-. Bulletin of Chemical Reaction Engineering & Catalysis, 14(2), 260–267. https://doi.org/10.9767/bcrec.14.2.2880.260-267
• Taher, T., Irianty, Y., Mohadi, R., Said, M., Andreas, R., & Lesbani, A. (2019). Adsorption of Cadmium(II) Using Ca/Al Layered Double Hydroxides Intercalated with Keggin Ion. Indonesian Journal of Chemistry, 19(4), 873. https://doi.org/10.22146/ijc.36447
• Taher, T., Mohadi, R., & Lesbani, A. (2018). EFFECT OF Ti4+/CLAY RATIO ON THE PROPERTIES OF TITANIUM PILLARED BENTONITE AND ITS APPLICATION FOR Cr (VI) REMOVAL. Rasayan Journal of Chemistry, 11(3), 1244–1254. https://doi.org/10.31788/rjc.2018.1133065
• Taher, T., Rohendi, D., Mohadi, R., & Lesbani, A. (2019). Congo red dye removal from aqueous solution by acid-activated bentonite from sarolangun: kinetic, equilibrium, and thermodynamic studies. Arab Journal of Basic and Applied Sciences, 26(1), 125-136.
• Taher, T., Ummu Hani, N., Rahayu Palapa, N., Mohadi, R., & Lesbani, A. (2020). A Comparative Study on The Adsorption Behavior of Congo Red on to ZnAl and ZnCr Layered Double Hydroxides. The Journal of Pure and Applied Chemistry Research, 9(2), 108–116. https://doi.org/10.21776/ub.jpacr.2020.009.02.519
• Trung, N. Q., & Anh, H. T. Đánh giá tác động của giãn cách xã hội đến chất lượng nước tại sông Nhuệ, sông Đáy, sông Tô Lịch.
• Uddin, A., Halder, S., Deb, N., Das, H., Shuma, M. L., Hasan, I., Shill, M. C., & Haider, S. S. (2024). Impact of Methods of Preparation on Mechanical Properties, Dissolution Behavior, and Tableting Characteristics of Ibuprofen-Loaded Amorphous Solid Dispersions. Advances in Pharmacological and Pharmaceutical Sciences, 2024, 1–15. https://doi.org/10.1155/2024/2303942
• Yang, H., Wang, Y., Ma, C., Sun, C., Liu, Y., Wu, K., ... & Gao, F. (2018). Effects of feed intake restriction during late pregnancy on the function, anti-oxidation capability and acute phase protein synthesis of ovine liver. Asian-Australasian Journal of Animal Sciences, 32(2), 217.
• Zhang, H., Zhang, Y., Ma, Y., Elsabagh, M., Wang, H., & Wang, M. (2021). Dietary rumen-protected L-arginine or N-carbamylglutamate attenuated fetal hepatic inflammation in undernourished ewes suffering from intrauterine growth restriction. Animal Nutrition, 7(4), 1095–1104. https://doi.org/10.1016/j.aninu.2021.06.004
