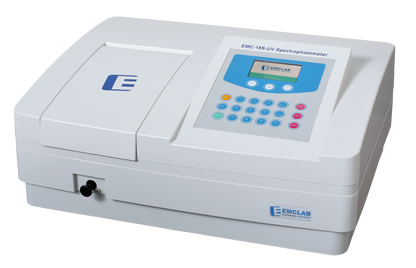

EMC-18S-UV +EMC-λ Lambda PRO, Single Beam
EMC-18S-UV +EMC-λ Lambda PRO, Single Beam
SKU:EMC-80032
Couldn't load pickup availability
- Made in Germany
- 2 year warranty
- PC software included
SPECIAL OFFER Discountable!
EMC-18S-UV + EMC-λ Lambda PRO, Spectrophotometer, Single Beam, Wavelength 190-1100 nm, Bandwidth 2 nm, incl. 4 glass & 2 quartz glass cells 10x10 mm, PC software EMC-λ Lambda PRO
Features:
- Color TFT screen
- System can also save the test results. Total 200 groups of data 200 standard curves can be saved in the RAM. Convenient for check and reload.
- Data can be restored after a sudden power cut
- Auto setting wavelength
- Tungsten lamp & Deuterium lamp can be turned on/off individually to extend lifetime
- Pre-aligned design makes it convenient to change lamps

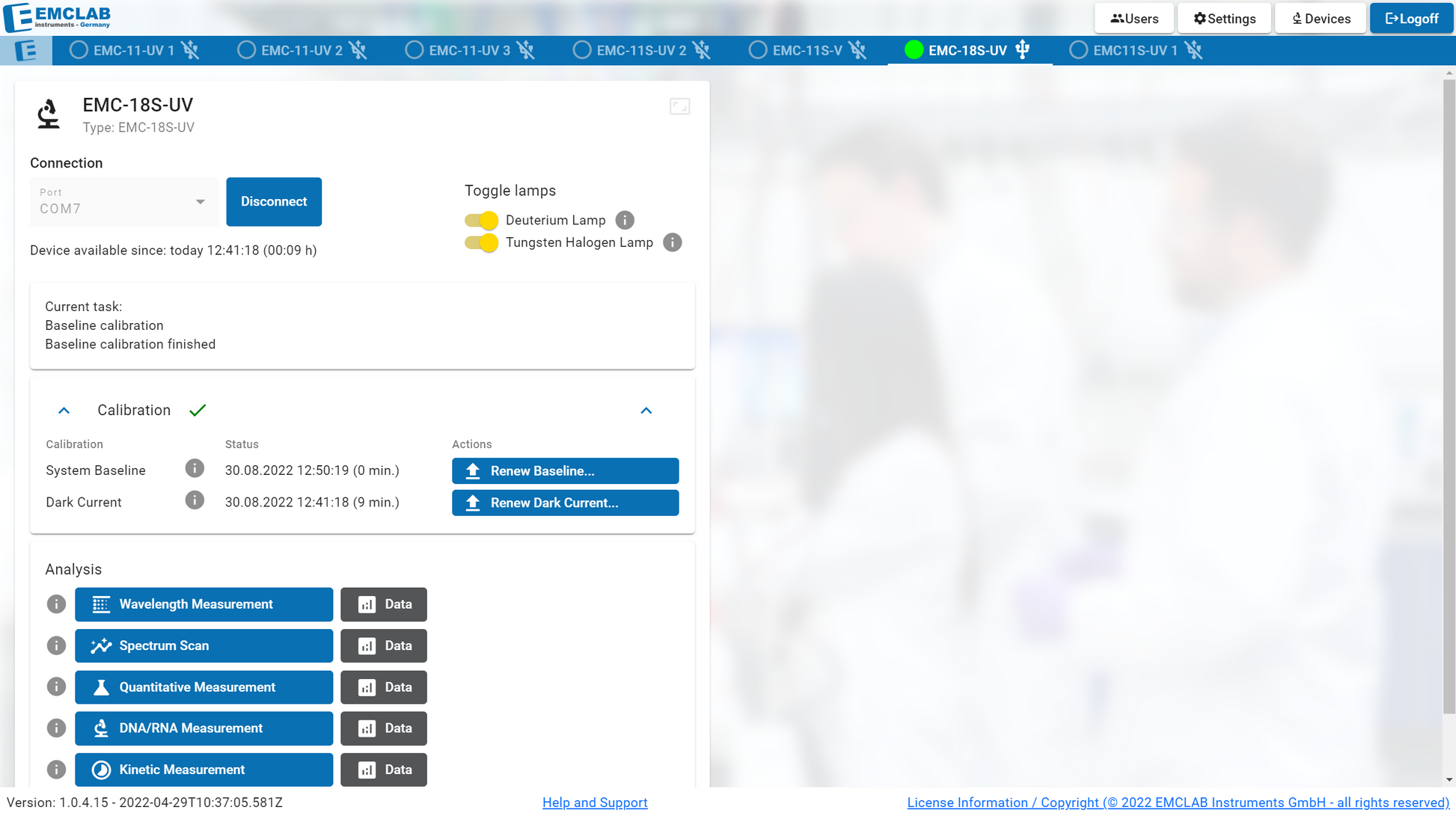

- Incl. PC Software EMC-λ Lambda PRO
- Incl. EMCLAB Calibration Certificate
Optionally available:

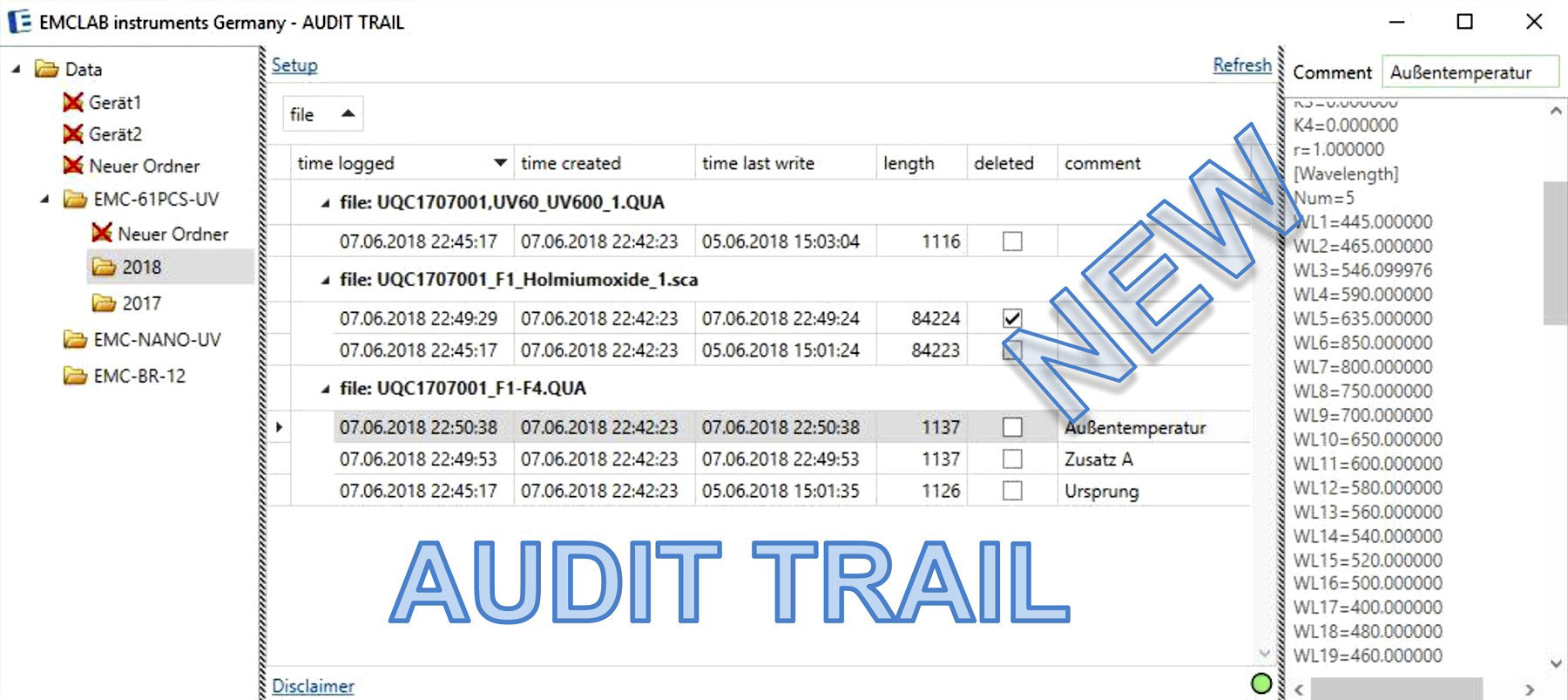

Windows® Pad, IQ/OQ/PQ documentation, Audit Trail PC software (FDA 21 CFR part 11 compliant)
| Model | EMC-18S-UV+ EMC-λ Lambda PRO |
| Wavelength Range | 190-1100 nm |
| Spectral Bandwidth | 2 nm |
| Optical System | Single Beam, grating 1200 lines/mm |
| Wavelength Accuracy | ±0.5 nm |
| Wavelength Repeatability | 0.3 nm |
| Photometric Accuracy | ≤±0.5 % T or ±0.005A@1A |
| Photometric Range | 0-200 % T, -0.3-3A, 0-9999 conc. |
| Photometric Repeatability | ≤0.2 % T |
| Photometric Mode | T, A, C, F |
| Stray Light | 0.05 % T |
| Stability | ±0.001A/h@500 nm |
| Baseline Flatness | ±0.001A (200-1000 nm) |
| Noise | 0.003A@500 nm |
| Detector | Silicone Photodiode |
| Display | TFT color screen |
| Central Beam Height | 15 mm |
| Standard Cell Holder | 4-position cell holder 10x10 mm |
| Light Source | Tungsten & Deuterium lamp |
| Output | USB port & Parallel port for printer |
| Power Requirement | AC 110/230 V 50/60 Hz |
| Dimensions (LxWxH) | 490 x 380 x 220 mm |
| Weight | 11 kg |
Features
Features
• Color TFT screen
• Self-check system
• Auto Zero and Blank
• Sample compartment for different cell holders
• Saves the results
• Up to 200 methods & 100 standard curves can be stored
• Incl. PC-Software EMC- Lambda (Wavelength Measurement, Spectrum Scan, Quantitative Measurement, Kinetic Measurement, DNA/RNA Measurement)
• Incl. EMCLAB Works Calibration Certificate
Technical Data
Technical Data
Wavelength Range: 190-1100 nm
Spectral bandwidth: 2 nm
Optical System: Single Beam, grating 1200 lines/mm
Wavelength Accuracy ±0.5 nm
Wavelength Repeatability: 0.3 nm
Wavelength Accuracy: ±0.5 nm
Photometric Range: 0-200 % T, -0.3 - 3A 0-9999 conc.
Photometric Repeatability: ≤0.2 % T
Photometric Mode: T, A, C, F
Stray Light: 0.05 % T
Stability: ±0.001A/h@500 nm
Baseline Flatness: ±0.001A (200-1000 nm)
Noise: 0.003A@500 nm
Detector: Silicone Photodiode
Display: TFT color screen
Central beam height: 15mm
Standard Cell Holder: 4-position quick change cell holder 10x10 mm
Light Source: Tungsten & Deuterium lamp
Output: USB port & Parallel port for printer
Power Requirement: AC 85 V~265 V 50/60 Hz
Dimensions (LxWxH): 490 x 380 x 220 mm
Weight: 11 kg
Package Contents
Package Contents
- EMC-18S-UV spectrophotometer
- Set of 4 standard glass cuvettes 10x10 mm
- Set of 2 quartz glass cuvettes 10x10 mm
- Dust cover
- Microfiber cloth
- Mainslead
- USB cable
- Calibration certificate
Package details: 64x54x43 cm, gross weight 16 kg
Academic References
Academic References
• Alsaedi, A. W. M., Al-Mousawi, A. J., Al-Hilphy, A. R., & Gavahian, M. (2023). Non-thermal pasteurization of milk by an innovative energy-saving moderate electrical field equipped with elongated electrodes and process optimization. Innovative Food Science & Emerging Technologies, 88, 103445. https://doi.org/10.1016/j.ifset.2023.103445
• Khudiar, A. I., & Oufi, A. M. (2021). Influence of the aluminium doping on the physical and gas sensing properties of SnO2 for H2 gas detection. Sensors and Actuators B: Chemical, 340, 129633. https://doi.org/10.1016/j.snb.2021.129633
• Taqi, S., Ullah, S., El-Beltagi, H. S., Shalaby, T. A., Ismail, A. M., El-Mogy, M. M., Amin, F., & Ali, U. (2024). Exploring Germination, Anatomical and Agronomic Responses of Vigna radiata L. to Temperature and Osmotic Potential via Halothermal Time Model. Russian Journal of Plant Physiology, 71(6). https://doi.org/10.1134/s1021443724608413
Made in Germany
Our spectrophotometers are built and calibrated in our headquarters in Duisburg, Germany. Every instrument is being tested and checked before being packed and shipped to our customers.

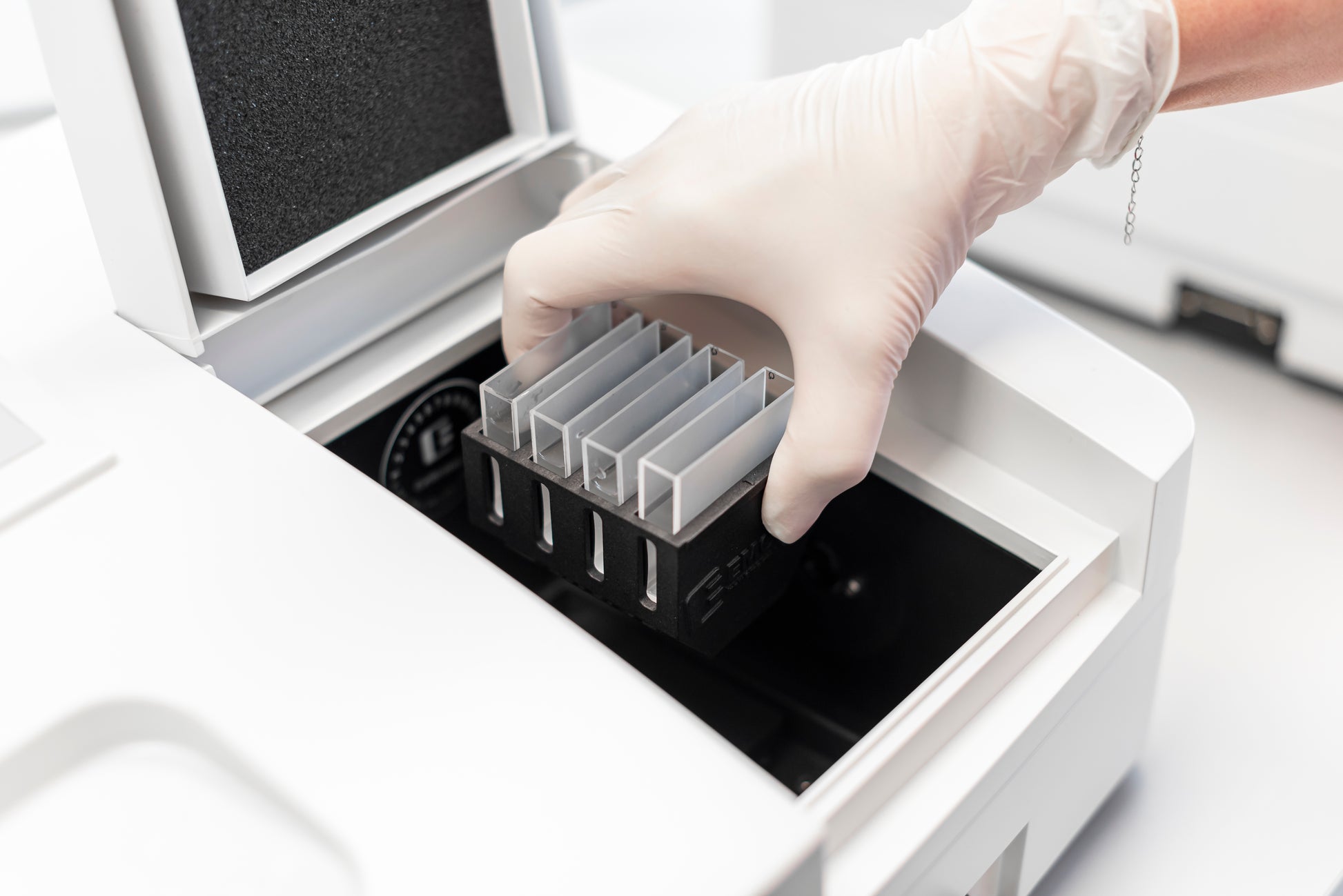

Versatility
The compatibility with our magnet quick change cell holder system ensures maximum versatility.
