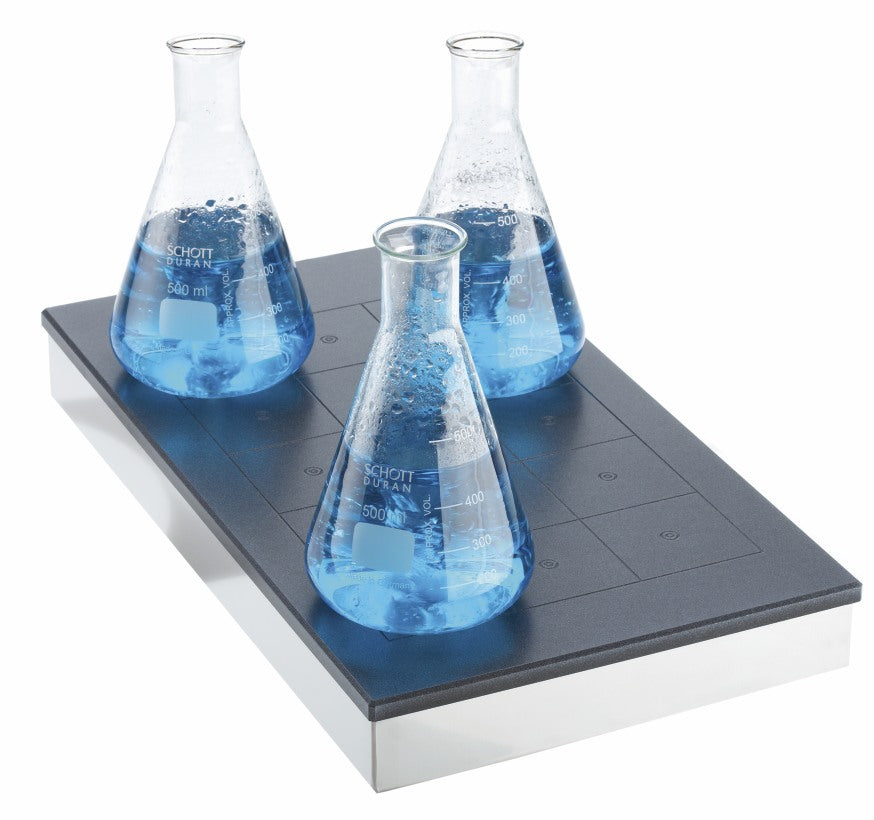

Hotplate 6

Stirring hotplate 6, incl. external controller, suitable for 6 x 1000 ml Erlenmeyer flasks, heating up fast

Stirring
Powerful 6 stirring points, maintenance-free and wear-free by inductive EMCLAB-Magnetic-Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 10-step power setting of the stirrer, high power setting for viscous liquids and reduced stirring power for long-term operation without any heating effects caused by the stirrer. Clear digital display for setting stirrer speed, stirrer power and temperature of the integrated heater, SoftStart for reliable catching/centering and safe accelerating of the stirring bar.
Heating
Heating plate made of resistant aluminium alloy, PTFE-coated for increased chemical resistance and easier cleaning, fast heating-up by powerful integrated electrical heater, homogenous temperature distribution, maximum heating temperature +200 °C, PowerDetect for automatic compensation of stirring power loss, caused by heating, which can reach up to 40% at high temperatures, independent over-heating protection inside the plate.

Including separate controller for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases as well as thermal influences, stainless steel housing.


Model	Stirring hotplate 6
Stirring points	6
Stirring point distance	130 mm
Stirring volume/point	1 - 1,500 ml
Stirring power (max.)	40 W Power setting 4 - 40 W (10-step)
Temperature (max.)	+200°C
Speed range	100 - 2,000 rpm
Dimension (WxDxH)	250x430x75 mm
Heating power (max.)	1,200 W
Operation voltage (max.)	230 V
Protection category	IP20
Weight (gross)	15 kg
