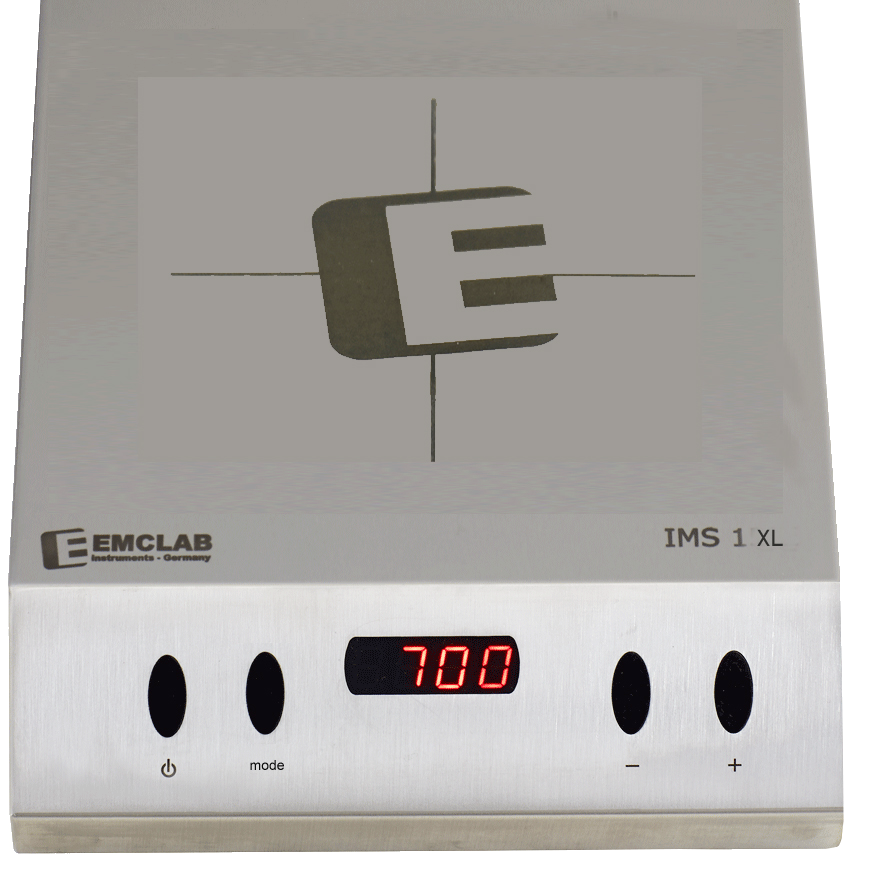

Inductive Magnetic Stirrer IMS 1 XL

Inductive magnetic stirrer IMS 1 XL, single point, up to 40 l stirring volume, with integrated controller, also suitable for highly viscous media, very strong magnetic coupling, predestined for magnetic power transmission over wide distances or for thick vessel bottoms

Maintenance-free EMCLAB-motor-drive with large speed range from 70 up to 2,000 rpm, fully encapsulated and tight stainless steel housing (IP65), extremely robust construction and performance, easy to clean. Integrated controller with strong 20 watts stirring power, 4-step power setting for high power with regard to large and viscous stirring volumes and reduced power for the warming-free continuous operation, SoftStart-function (adjustable, 4 steps) for different volumes and viscosities, adjustable interval times for automated restart of the stirrer after max. 240 seconds. Clear digital display for speed-, power-, SoftStart- and interval setting, QuickSet for quick setting of start and maximum speed, automatic memory function to save last settings.


Model	IMS 1 XL
Stirring points	1
Stirring volume	1 - 40 l
Speed range	70 - 2,000 rpm
Power setting	5/10/15/20 W
Acceleration	20/30/60/120 s
Interval	0 - 240 s (2-step)
Dimension (WxDxH)	225x280x35 mm
Housing material	Stainless steel
Operation conditions	-10° C - +50°C / 95% H
Electrical data	100-240 V/ 50-60 Hz/ 1.5 A
Protection category	IP65
Weight (gross)	4.0 kg
