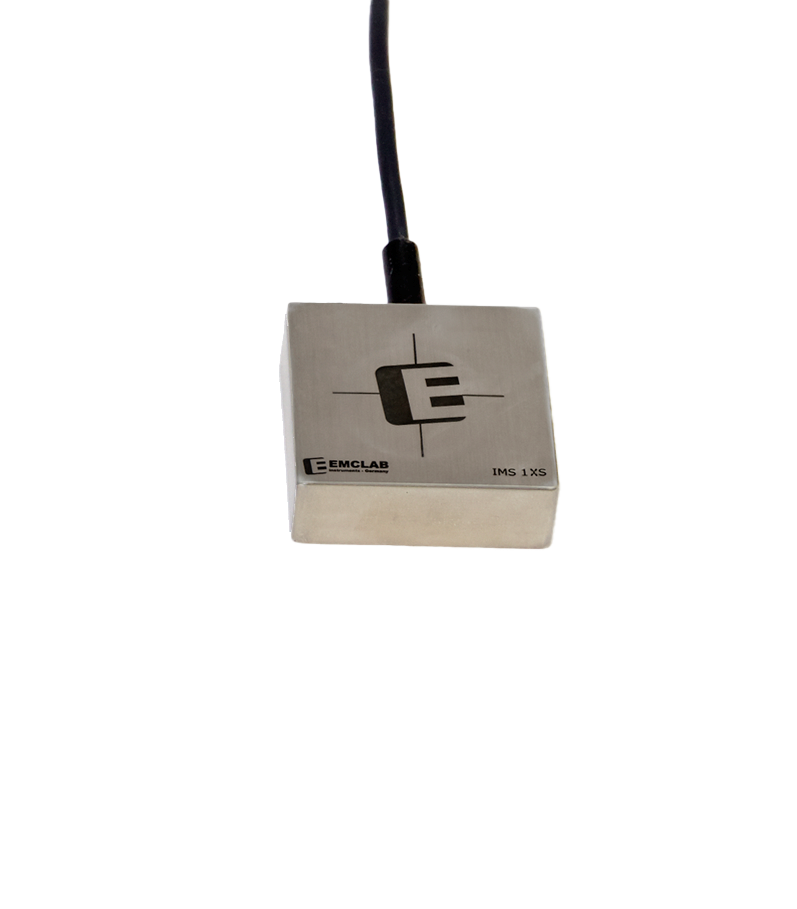

Inductive Magnetic Stirrer IMS 1 XS

Inductive magnetic stirrer IMS 1 XS, single point, stirring volume max. 1,000 ml, submersible up to +50°C, without controller, ideal size for integration

100% maintenance-free and wear-free by inductive EMCLAB-Magnetic-Drive concept for powerful mixing of solutions. Fully encapsulated and hermetically sealed stainless steel housing, M4 thread integrated in stainless-steel bottom plate (not HT-version), IP68, water-, dust- and germproof, extremely robust construction, easy to clean, maximum resistance, submersible in water- or oil baths, suitable for the use in CO²-incubators and ovens.
Two different versions available: Basic-version up to +50 °C, on request: HT-version up to +95 °C submerged in water baths and up to +200 °C in ovens. Please order controller separately! (Compatible with controllers C1 and C2 and/or in combination with plug-for-4).


Model	IMS 1 XS
Stirring points	1
Stirring volume	1 - 1,000 ml
Stirring power (max.)	10 W
Dimensions (WxDxH)	48x48x18 mm
Housing material	Stainless steel
Operation conditions	-10° C - +50°C exposure to air/ up to +50°C in water
Operation conditions (HT)	up to +200°C exposure to air/ up to +95°C in water
Operation voltage	48 VDC
Protection category	IP68
Weight (gross)	0.25 kg
